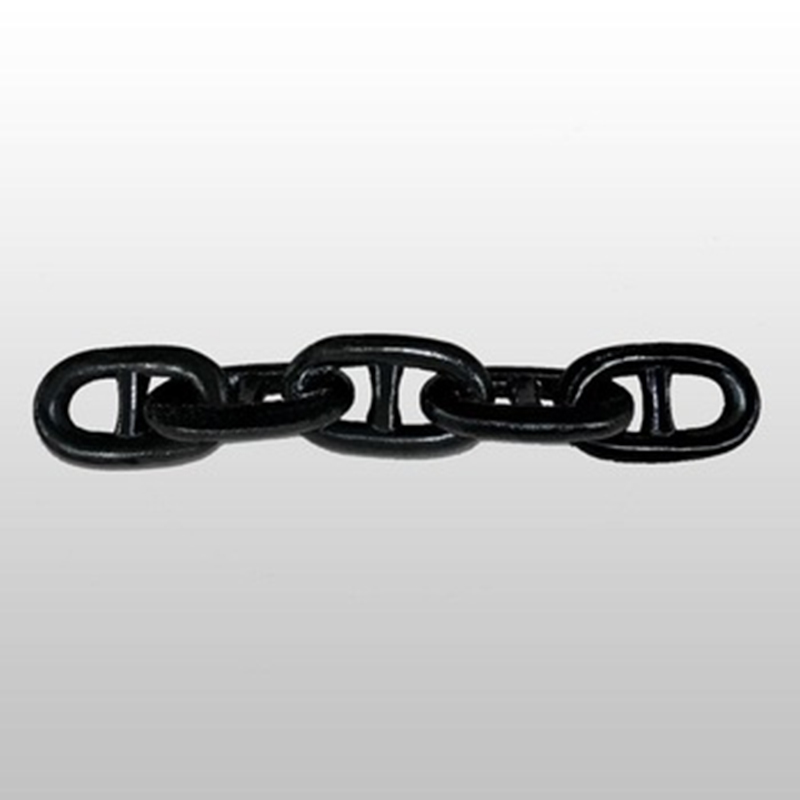

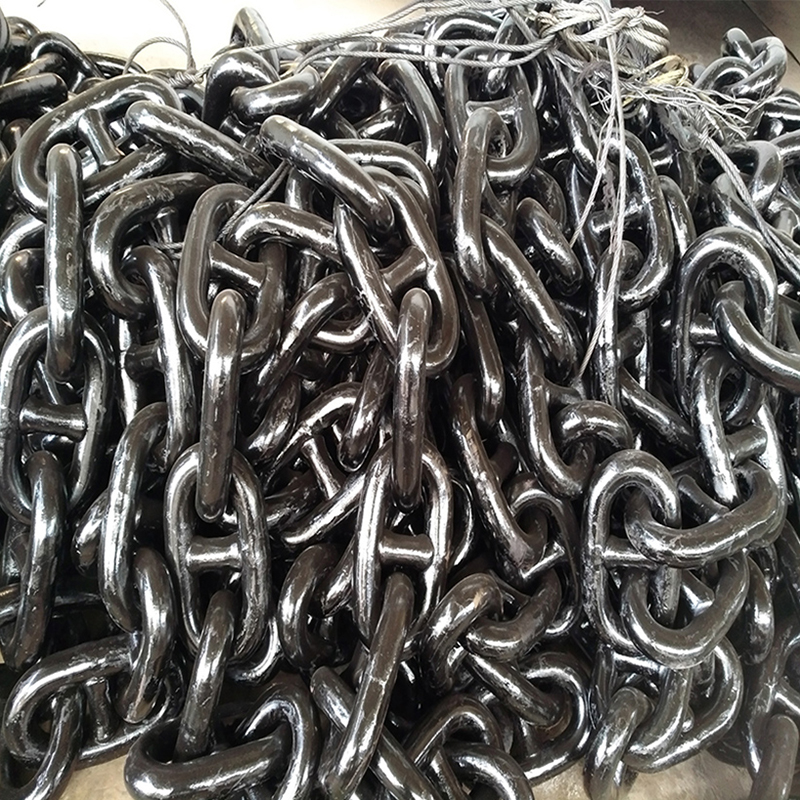

U1 U2 U3 marine anchor chain belt accessories

  • U1 U2 U3 marine anchor chain belt accessories
  • U1 U2 U3 marine anchor chain belt accessories
  • U1 U2 U3 marine anchor chain belt accessories
  • U1 U2 U3 marine anchor chain belt accessories

U1 U2 U3 marine anchor chain belt accessories

    Min. Order: 1 Ton
    Packaging: Nude, PP Ton Woven Bag
    Transportation: Ocean,Air,Land
    Place of Origin: CHINA
    Supply Ability: Delivery Time: 3-15 Days
    HS Code: 7315810000
    Port: SHANGHAI,ZHEJIANG,QINGDAO

Product Description

The Anchor Chain is divided into cast steel anchor chain, electric welding anchor chain and forging anchor chain according to its manufacturing method. The cast steel anchor chain has high strength, good rigidity, small deformation, wear-resisting, the crosspiece is not easy to loosen, the service life is long, and it is suitable for mass production. The disadvantage is that the process is complicated, the cost is high, and the impact resistance is poor. Electric welding anchor chain is made of round steel material that meets the requirements and is welded. It has the advantages of advanced and simple production technology, low cost and good quality. Forged anchor chain has good impact toughness, but the manufacturing process is complicated, the cost is high, and the quality is unstable.
At present, electric welding anchor chain has been most widely used on merchant ships. Anchor chains are almost all manufactured by flash welding, and cast anchor chains are rarely used. Except that most of the anchor chain accessories are forged parts, the forged anchor chain has been basically eliminated.
The steel grade of the anchor chain used for the production of the anchor chain is divided into three grades: M1, M2, and M3 for electric welding, and two grades for cast steel anchor chain, M2 and M3. Add A (such as AM2) before the corresponding code to indicate a gear chain, and B to indicate a gearless chain (with two levels of BM1 and BM2). The higher the steel grade, the greater the tensile strength. AM1 grade anchor chain steel is killed steel, AM2, AM3 grade anchor chain steel is fully killed and fine-grained steel. For the same ship, if steel with high strength is used, the size of the chain link can be appropriately reduced.U1 U2 U3 marine anchor chain belt accessories
U1 U2 U3 marine anchor chain belt accessoriesU1 U2 U3 marine anchor chain belt accessoriesU1 U2 U3 marine anchor chain belt accessoriesU1 U2 U3 marine anchor chain belt accessories

Jiangsu Zhongcan Marine Equipment Co.,Ltd.

  • 1
  • 2


Jiangsu Zhongcan Marine Equipment Co., Ltd. is a professional to provide marine products company, the main products are: anchor, Anchor Chain and accessories,studless anchor chain, mooring chain, hatch chain, chafe chain, buoy chain, galvanized chain, stainless steel chain,marine chainlet,anchor ring,anchor buoy,triangle plate;outfitting (anchor releaser,chain stopper,chock,fairlead,chain wheel,bollard, eye plate,eye ring,chain locker eye ring,chain stop hook,anchor stopper, doors,windows,covers,ladders,anchor mouth,hawse pipe,windlass, winch,etc.);Marine Rigging (container fastener,marine alloy steel shackle, pulley, etc.).Marine gally equipment,marine stores,and other marine products.

Anchors and anchor chains and other products have passed ISO9001 quality system certification,and have obtained the approval certificates of ten classification societies: CCS,ABS,GL,BV,LR,DNV, NK,KR,RINA,RS. Quality assurance.

Our company has always insisted the tenet of [ Quality first, Customer foremost", for domestic and foreign customers with quality products and satisfactory service.
